Please check these updates regularly

Sango

Use the hull spacing dimension from the drawing, not the photosheet. It should be 3700mm

Round Bilge offset table

Although the full size patterns are correct I still include an offset table for use as a check. I recently discovered a couple of errors in the table:

Frame 3 WL2 should be 215
Frame 4 WL3 should be 188
Frame 5 WL3 should be 202
Frame 8 WL2 should be 217

Daggerboard Position

The drawings show the daggerboard cases fitted on the outside of the hull. That is so that they do not interfere with the wing lockers. However the photo sheets show the daggerboard case on the inside of the hull. The builder whose boat I photographed chose this position to make it easier to reach and adjust the boards.

There is no real difference in performance between the two positions so the choice is yours.

Sango and Wizard Basic Hard Chine Materials List

Hull planking 12 sheets 6mm ply 3 sheets 9mm ply
Decking 6 sheets 6mm ply
Timber 2in x 1in 200m 1in x 1in 100m
NOTE: all plywood to be best quality gaboon (okume) marine grade
All timber to be best quality softwood eg Douglas fir, sitka spruce, yellow cedar or similar.
NOTE: Timber sizes are nominal. Planed all round (PAR)
Glass sheathing 300g glass cloth (hulls) 36sq m 200g glass cloth (decks) 12sq m Epoxy 30kg min Fastenings Either 1in counter sunk stainless steel self tappers or gripfast/anchorfast barbed ring boat nails Approx 2000 reqd

Wizard needs 3 fewer sheets 6mm ply

Raised hull cabins

These are removable and will fit nest one inside the other and fit on the cockpit for transport. Adds headroom and light to the hulls. CLICK HERE for basic drawings

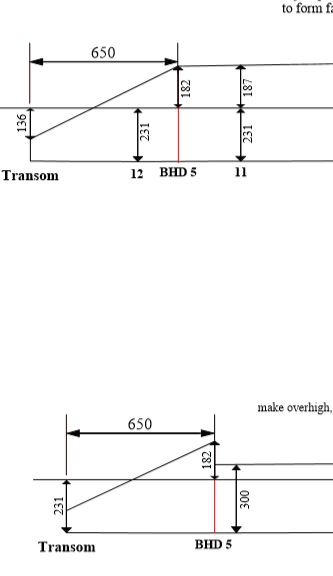

Bulkhead dimensions

Bhd 4 sheer height is 684 (not 634)

Bhd 6 aft deck height above gunwale is 89 (not 97)

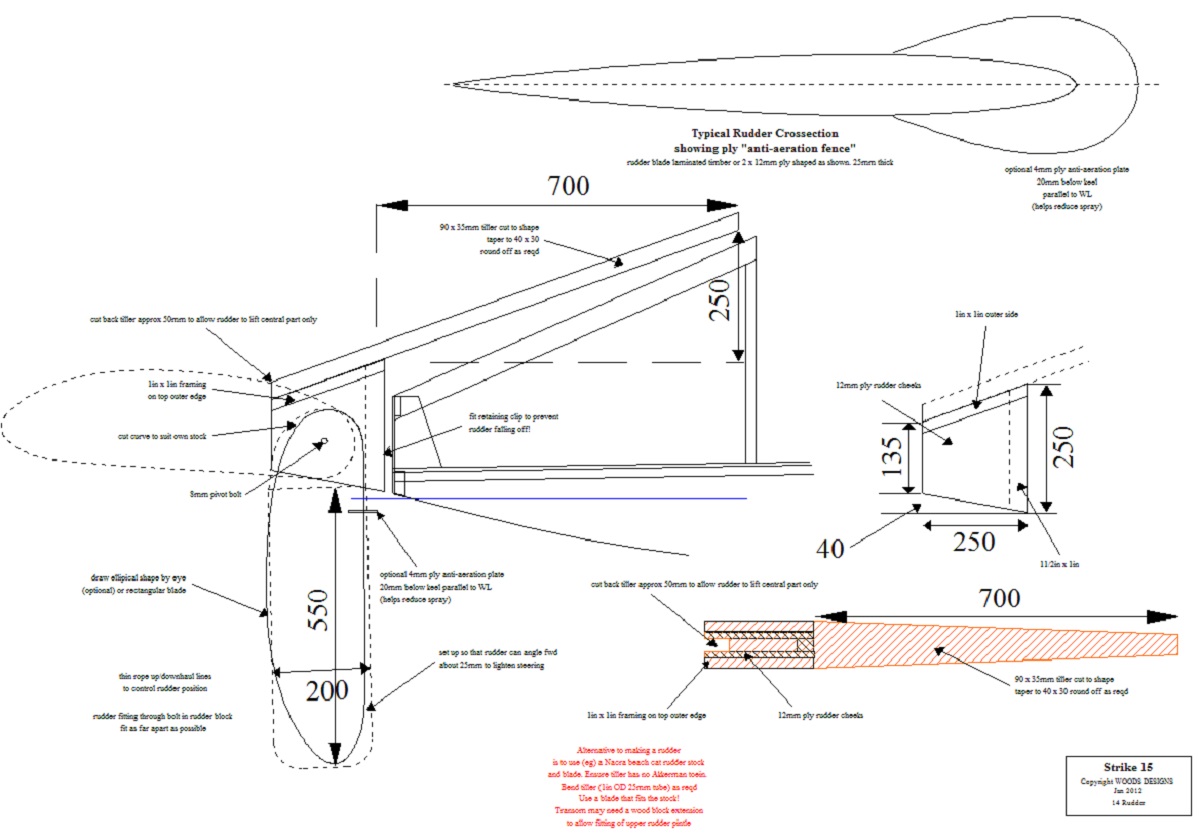

Tillers should be 700, not 480 long

Rudders can be 150mm shorter.

Glass layup can be 600g biaxial on each side of the strip cedar.

I have uploaded a revised sheet and some photos of the outrigger beam attachment blocks as a zip file

You can download it HERE The beams need to be glassed all round. Shortly I will be updating the plans with slot-in aluminium tube beams. These will be lighter and easier to make, but will make it harder to assemble and the Strike cannot then be folded for storage.

Strike 18 Materials List

6mm gaboon ply (8ft x 4ft sheets) 10 sheets

2in x 1in 25m
11/2in x 1in 40m
1in x 1in 10m
5in x 1in 3m or laminate from 2in x 1in

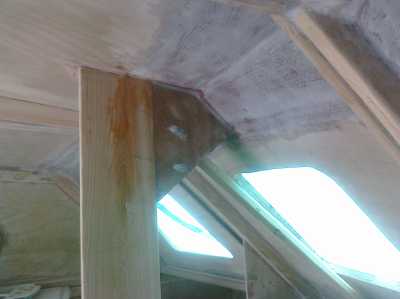

3in x 2in kingpost 1.3m

Epoxy resin 10kgs min 200g glass cloth 2kgs min
Screws 3/4in counter sunk stainless steel 1000 (or use barbed ring nails)
Filler etc as required
Scrap timber for frame No allowance for waste Timber sizes nominal planed all round (PAR) use softwood, eg Douglas, fir, Sitka spruce etc

The outboard bracket sketch is HERE, see photo below. A 2hp min outboard is recommended, 3hp max. We use a 4 stroke Suzuki 2.5hp. Highly recommended, as it is the lightest small outboard available. Max speed is 6.5 knots.

The beam bolt plate is shown below.

The trampoline fastening is shown below

Note pocket at front end. Inner edge has a sleeve with 18mm (3/4in) dia aluminium tube inside. Lash this to the hull with lashings at about 300mm (12in) spacing. Either use eyelets or simply drill through the timber. Inner edge tramp should line up with beam bolts.

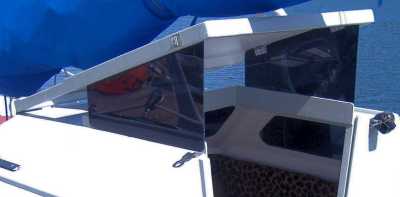

The removable cabin is made after completing the boat and is made to suit your boat. See sketch HERE and typical hatch below. This version gives more headroom below, but is awkward to get into when sailing to windward. A sliding hatch is a better option in that case. The "aft deck" of the cabin should be 200mm high max. It can be lower, but room inside reduces however it makes it easier to cross the deck when tacking. Adjust panels as necessary

To simplify raising the mast, chainplates can be added to the windscreen corners. Note these may need to be removable if cabin is fitted. Top hole for shackle to line up with mast step pivot.

Embarrassing note: I initially fitted mine in the wrong place, later they were moved forward, see photo below.

A method of reefing is recommended. There are two options. First, and recommended, is to have reef points installed about 1m (3ft) above the boom or as convenient. The second is simply to "roller reef" the mainsail by rolling it round the boom. Note this will probably mean lowering the sail completely first, but is obviously the easiest method if you rarely sail in bad weather. A roller reefing/furling jib is also recommended.

If the cabin is not fitted you will need a simple boom tent (approx 8ft x 6ft) to stop rain water filling the cockpit if the boat is left afloat.

To attach the aft corners we screwed small eyelets to the outriggers

It maybe that we have sailed our own Strike too much in the rain, but I have now decided that a longer windscreen is a more practical, comfortable arrangement for those not using the removable cabin. See sketch HERE. Of course the removable cabin can still be fitted, but the dimensions will have to be modified to suit the longer windscreen.

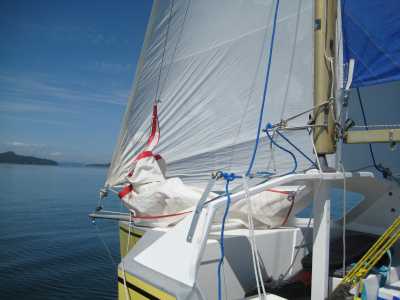

The photo below shows wire luffed screecher, mainsail downhaul and kicking strap details. Note mast rotation spanner can be forward or aft of mast. Blue lines are spanner rotation lines to eyelets on window joints, while vertical blue lines are temporary stays (left slack when sailing) to assist mast raising. These have now been changed to 2mm wires. Kicking strap only needs to be tight when offwind (otherwise mast rotation is difficult).

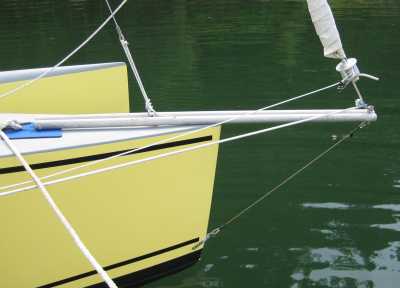

The optional screecher is for experienced sailors only. Luff 7.5m, leech 6.5m, foot 4.6m, area 15sqm. All sizes are approx, depends on own mast. It is fitted to a bowsprit which is two 11/2in (37mm) dia aluminium tubes 1.8m total length. Fit each side of forestay fitting, so tubes are slightly bent - which helps hold them stiff. Attached on the inner end by a horizontal through bolt which goes through a large eyelet bolted to a deck pad. Note blue rubber pad to stop chafe. Outer end is bolted together with a 2in x 6mm x 4in long (50mm x 6mm x 100mm) aluminium plate which takes dolphin striker (below) and screecher furling drum (above)

3mm (1/8in) wire dolphin striker is taken to a chainplate bolted through solid stem just above WL. Screecher furling drum at bottom and swivel at top to suit a beach cat screecher. Halyard take off at mast head.

Screecher halyard is pulled to masthead. Then lower end is tightened by rope through block at bowsprit end to convenient cleat by windscreen (cleat shown on right with thick rope). Furling line to small cleat as required (above beam). Screecher is sheeted to small swivel blocks initially lashed mid way along aft beam. Adjust position to suit own rig after trial sails. (Because the boat uses a variety of beach cats for rig and outriggers you have to expect a degree of experimentation to get the boat optimised.)

NOTE: If using the cabin or if sailing in Category C (coastal) rather than Cat D (sheltered water) then "waterstays" are recommended to help stiffen the beams. If using Quattro hulls then make both the fore and aft beams from the same section and fit both vertically to maximise stiffness. See sketch HERE. Note, you may be able to use the existing dolphin striker fitting on the front beams.

For those who want better windward performance, particularly when using a boardless beach cat, I have drawn a main hull daggerboard. Note, this can be retrofitted if desired. Click HERE for a drawing

If you sail regularly in shallow water you may prefer a main hull centreboard. See HERE for a pdf basic drawing

The bottom of Bulkhead 1 needs trimming off square to suit the keel stringer. It probably isn't that clear from the drawings, but the building manual sheet 2, top photo, shows it well.

You can reduce the beam mounting extensions as shown in the photos below. Note: When drilling the pivot holes ensure that they are the same distance above the WL (or wing base) +/- 30mm or the beams will not fold up easily. There is an updated Sheet 18 HERE

Note bevelled wood block above beam bracket that helps support beam when folded up

We started with a rope mainsheet horse. Simple, but awkward and irritating. So we have now changed to the proper horse shown below. All made from scrap 4in x 2in, as always. Note simple car adjustment. Track height will depend on your own tiller. Ensure it can tack properly!

The simplest mast supports are as below. We made ours from scrap 4in x 2in timber, soon to be remade properly, but even so they would be neater in aluminium!

The advantage of this mainsheet system is that the aft mast support slots neatly in position (note the locating blocks glued to the transom step) with no lashing required.

Mast supports should result in mast resting approx 100mm above mast step

Note: The aft support should be wider than the diamond spreaders to simplify moving the mast. The roller helps. This support comes under high twisting load as you push the mast to/fro so bolt it together securely. The forward support is less loaded. Again note supports which stop support moving. Also note vital carpeting! Alternatively (depending in part on towcar used and local trailering laws) you can fit a pad on top of the mast step and use that as the forward support (we use a fender). Saves weight and time.

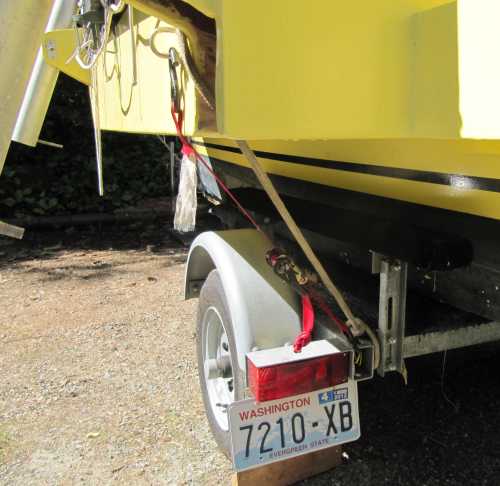

We fitted U bolts through the cockpit sides (pads on the inside of course) to take the hold down straps, see below.

The white rope holds the (std) outrigger in place, obviously there is another on the other side of the trailer for the port outrigger. We also have a security strap holding the forward end of the outriggers together.

The hull securing straps are cut to length and marked, one port and std aft, one forward (not strictly necessary) plus the trailer winch which also holds down the front mast support. The mast is held down by two straps, again cut to length and marked. It all speeds assembly/disassembly.

Although we have had no problems with our standard trailer (even though we live up a very steep bumpy track and launch from a rough shingle beach) I recommend getting a trailer with as wide a wheel base as possible. That will give a more reassuring ride, especially on main roads busy with large vehicles.

Although it is feasible to raise the mast in one go, as shown on the video, you can use a temporary supporting pole to give yourself a breather. See photo below showing our pole, made, as always, from 4in x 2in and about 1.5m long. Note "U" shaped notch to hold mast securely. Pole slots between mainsheet track and transom step

To make it easier to tack the jib and prevent snarl-ups I remove the mast raising stabilising wires and clip them to a eyelet on the front of the windscreen (hidden inside the tube in the photo below). Then I cut a 600mm (24in) piece of 37mm dia (11/2in) water pipe and slid it over the wires as shown in the photo below. Works a treat

One idea that I should have thought of are the wing lockers as seen on the Strike built by "Nealfromtexas"

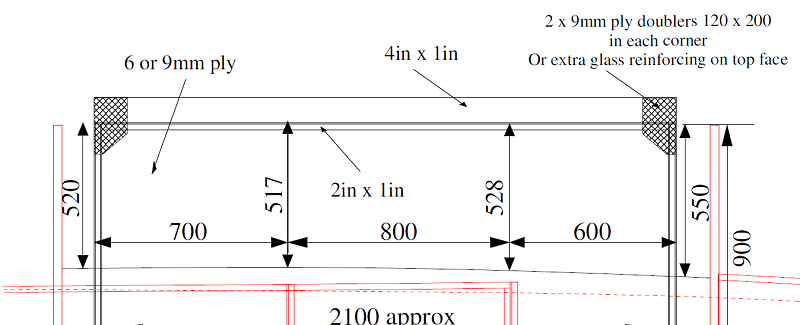

A 100+kg (20 stone, 240lbs+) man was helping us rig our boat on shore. He jumped onto the cockpit wing and cracked the joints. So I suggest adding an underwing stringer running full length between the beams. You can download a pdf of the revised drawing HERE
