Javelin Exterior 1

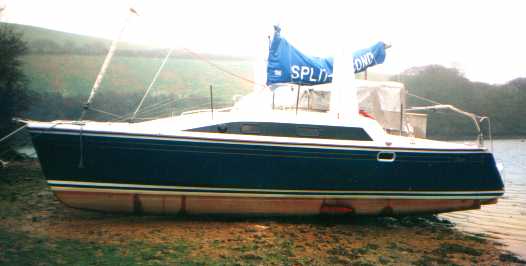

Beached Javelin

This Javelin has a "soft top" canopy to give extra protection to the crew. The front section can be left up when sailing. The back part needs removing so that it does not interfere with the genoa sheets

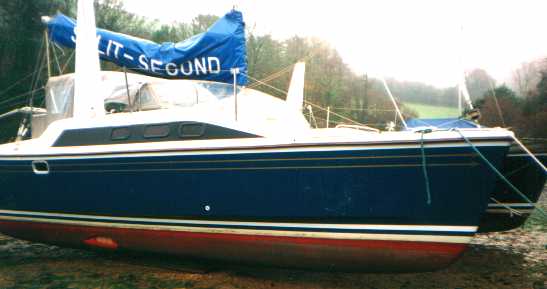

bow view beached Javelin

Note daggerboard case slot on outer hull side is well clear of the bottom so cannot get filled with mud or stones. Also note shallow (150mm/6") beaching keels which help protect the hull bottom when drying out

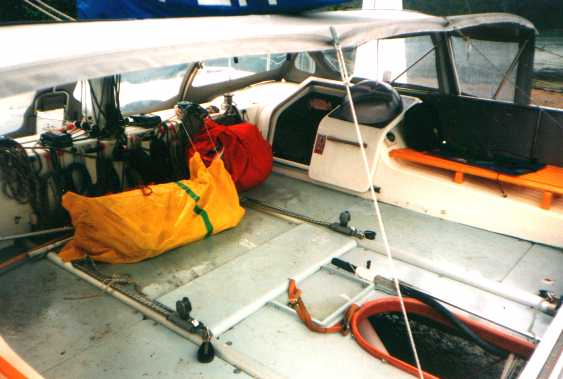

Soft top on Javelin

Cockpit view showing the area protected by the canopy. Note hole aft for outboard (box cover has been removed)

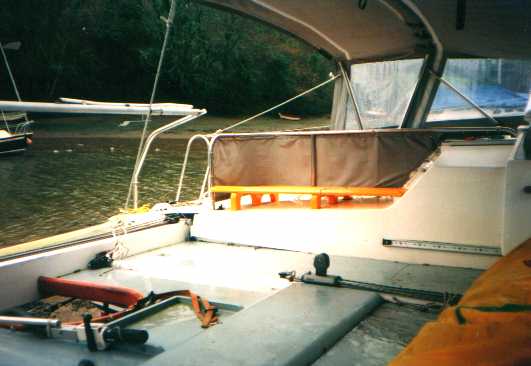

Soft top on Javelin looking aft
Seating area over aft deck makes for a very comfortable steering position. Note rudders and tiller bar in raised position as boat is dried out. When sailing tiller bar is about 6" above aft beam
