Gypsy Building 1

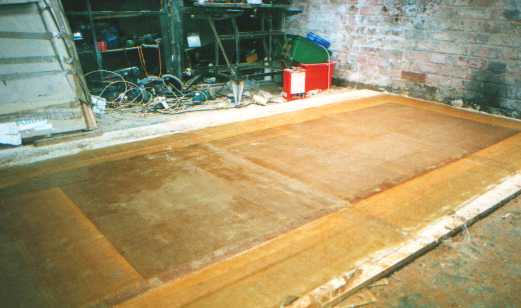

flat panel hull laid up

Hull panels are made on melanine faced chipboard or MDF, producing a smooth, gel coat finish. This Gypsy was started in a 5m x 5m (16' x 16') garage, so the hull panels were made in two pieces, each 14' long

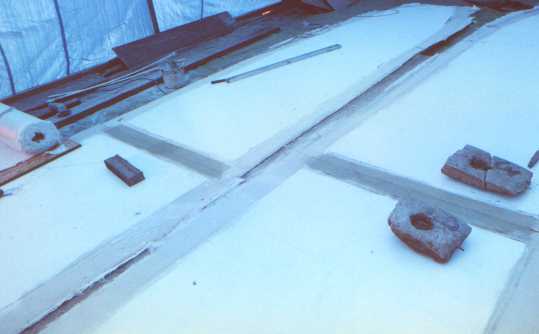

flat panel hulls ready to fit to boat

Hull panels are now joined, bulkheads set up on a strong back and the panels lifted up into position. The keel panel is then fitted and the bulkhead/hull panel and keel joints made before turning over.

Hull now the right way up

Keels are not fitted until a late stage. This means the hull is nearer the ground, simplifying access and it is self supporting so no cradles are needed.

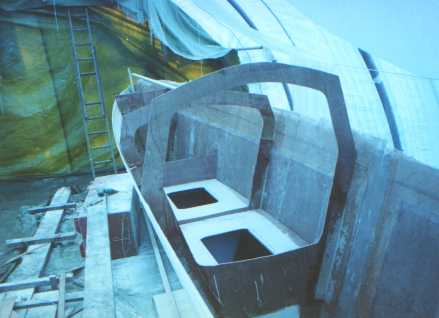

top view hull showing bulkheads and bunks

Bunk bases help stiffen the hull sides
