The Nimbus 40 Offshore Cruiser

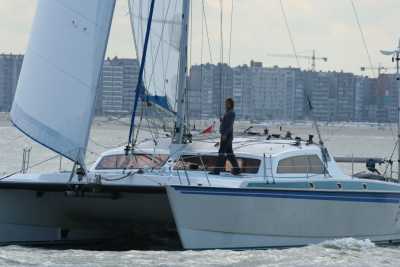

Nimbus under sail

NIMBUS is a boat that can take you anywhere in the world in perfect comfort and safety. Masses of room and lots of loading capacity make it an excellent long term live aboard cruiser. The accommodation layout has been specifically designed for a liveaboard family, although obviously other layouts are feasible, especially if you plan to use the boat for chartering.

Nimbus "dining room"

At home you normally leave the dining table after a meal and relax in easy chairs. It should be the same on a comfortable cruising boat. So on NIMBUS the dining room is in a hull, as shown, leaving the saloon free for socialising away from the dirty crockery.

NIMBUS has a very dry, comfortable performance whether under sail or power and can sail at cruising speeds of 8 - 10 knots. Twin 27hp diesels, one in each stern compartment give excellent manoueverability - essential for such a large boat. The optional inside steering position is a boon in bad weather, particularly when sailing short-handed or when motoring.

NIMBUS is about the largest boat that should be attempted by an amateur builder - allow 4000 hours build time.

S African Nimbus

Here is a short Youtube clip, taken from the Multihull Sailors Have More Fun! video, see the Video page for more details.

You can see more photos, material list etc here

http://www.sailingcatamarans.com/1nimbus15index.htm

To order the Download versions of study plans or building plans please use the Shopping Cart

To order paper versions of study plans or full building plans please use this order form

home

Contact
Richard Woods
Foss Quay, Millbrook, Torpoint, Cornwall, PL10 1EN, UK


NIMBUS 40 Offshore Cruiser

THE FACTS AND FIGURES


round bilge foam sandwich hulls, foam sandwich decks

LENGTH O.A. 12.2m
LENGTH W.L. 11.1m
BEAM O.A. 7.6m
DISPL (empty) 5.5T
DISPL (loaded) 9T
HEADROOM 2m min
DRAFT 1.1m
SAIL AREA 82 sq m

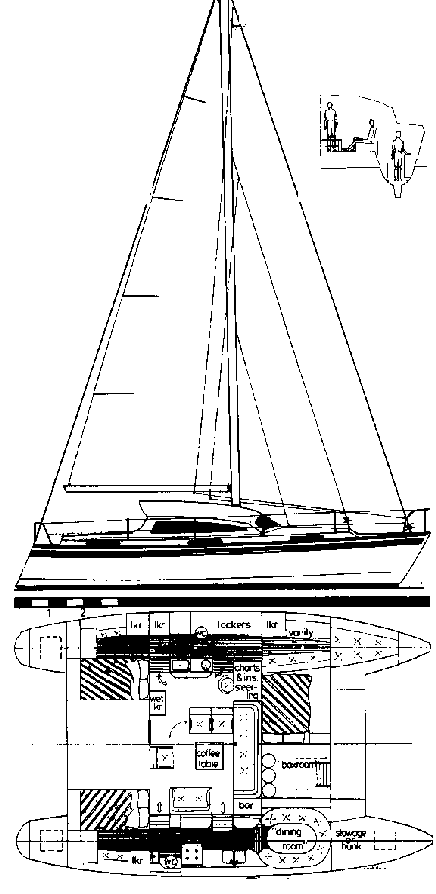

Nimbus lines drawing
